Part 1 Computer Basics

Part 2 Programming in C

Notes: Firefox & Chrome: Left-Click on the c-program's filename and copy into jEdit.
  Internet Explorer: Right-Click on the filename and save in the SDBA directory on your computer.
  You need to have jlib.c and jlib.h compiled by gcc -o jlib.c so that you have jlib.o in the same directory as your code.
  VP-diagrams & next steps are accessable from index.swf in the application section of the viewgraphs

物理 Physics: Falling Objects

光學 Optics: Ray Tracing

數值分析 Numerical Analysis: Roots

Work Sheets Gravity Work Sheet Ray Tracing Work Sheet Root Finding Work Sheet
ThinkingWrite UML to represent problem (or a simplification) clearly
Functions From UML to commented pseudo-code. Deciding between writing one's own functions and using library or other people's functions Start with the simple Program m0.c (simple program), which you can compile/link/run with m0.txt or m0gdb.txt (to add information for debugger). Modify it according the UML diagram. Your code should be commented pseudo-code that calls functions.

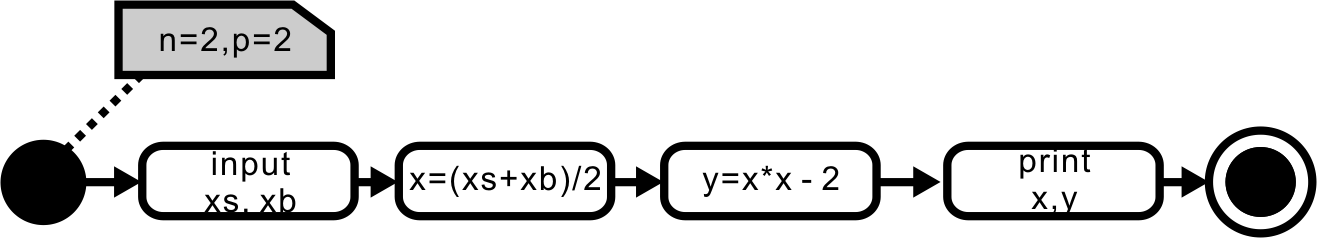

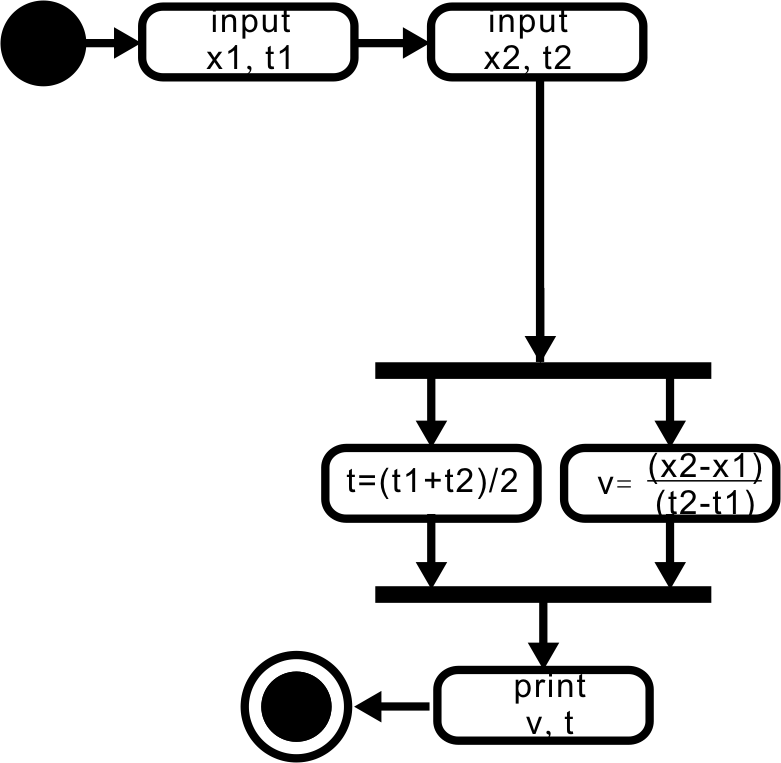

UML → mg1com.c UML → mo1com.c UML → mr1com.c
Variables mg1com.c → mg2fixed.c
(Implement w/Fixed Point)
mg1com.c → mg3float.c
(Implement w/ Floating Point) 		1. mo1com.c → mo2float.c (Implement w/ Floating Point)
2. mo2float.c → mo3com.c(Add commented code to use coordinate system)
3. Finally mo3com.c → mo4float.c(Implement coordinate system code w/floating point) 		mr1com.c → mr2float.c
(Implement /Floating Point)
PointersUse Pointers & addresses to get input using stdio.h function fscanf() For Physics and Optics Problem, get 2 piece of input with a single fscanf() call.
mg3float.c → mg4ptr.c mo4float.c → mo5ptr.c mr3ptr.c → mr3ptr.c
Flowmg4ptr.c → mg5loop.c & mgdt.csv (Purpose: Repetition + File Entry → Less typing errors) 1. mo5ptr.c → mo6if.c (Conditional: Correcting Lens Equation)
2. mo6if.c → mo7split.c + molib.c + molib.h (Split User Functions into three files)
3. mo7split.c → mo8loop.c (Repetition for multiple lens) 		mr3ptr.c → mr4loop.c (Add Conditional + Repetition to zoom into root automatically)
Arrays mg5loop.c & mgdt.csv → UML → mg6array.c (Formatted Output table: Can Easy check data) mo8loop.c, molib.c, molib.h, mo8.bat → UML → mo9array.c (Separate input, calculation & output phases) 1.mr4loop.c → mr5array.c (Generalize equation that we can solve) (alternate version of mr4loop-alt.c)
2.(Bonus) Try to write code to take the n-root-p where n is an integer mr5array-nrootp.c
Records mg6array.c, mgdt.csv → mg7rec.c Use a record to link the observables and their time coordinates mo9array.c, molib.c, molib.h → moArec.c Connect lens: lf and lx in record Opt → moBrec.c getOptR: Make pointer free version mr5array.c → mr6rec.c Use a record to link the x,y data
Text Physics mg7rec.c & mgdt.csv → Optics moArec.c, moBrec.c → Numerical Analysis mr6rec.c →
